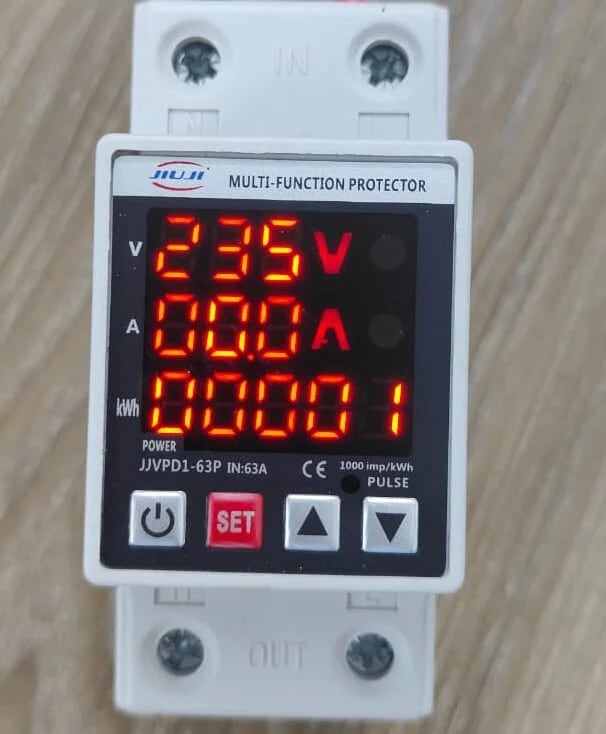

VOLTAGE PROTECTOR WITH OVERLOAD with Metering

Description

Technical data

Rated Working Voltage: 140-300 AC
Rated Frequency: 50/60HZ
Rated Working Current: 63A
Meter: Kwh
Over-voltage Protection Value: AC230V-AC300V
Under-voltage Protection Value: AC100V-AC220V
Voltage Power Off Time: 1-400s
Overcurrent Protection Value: 1-63A
Overcurrent Power Off Time: 1-30s
Recover time(Starting Delay Time):1-400s
Own Power Consumption: <2W Pollution Level 2 Class Rated Insulation Voltage: 400V Output Contact: 1NO Protection: lP20 Pollution: 3 Electrical Life: 100000 times Mechanical Life: 1000000 times Altitude: <2000m Operating Temperature: -5°C~40°C Relative Humidity: 50% at 40°C(non-condensing) Storage Temperature: -40°C~55°C Installation: 35mm DIN rail
